Complete OneWire bus and sensor state snapshot. More...
#include <sensor_manager.h>

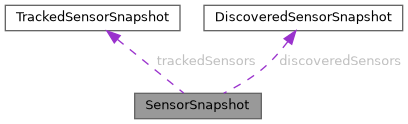

Collaboration diagram for SensorSnapshot:
Public Attributes | |
| bool | busInitialized |
| True after the OneWire bus is initialized. | |
| bool | presenceDetected |
| True when at least one device is present. | |
| bool | conversionPending |
| True while waiting for a temperature conversion. | |
| uint8_t | discoveredSensorCount |
| Number of devices found during discovery. | |
| uint32_t | lastDiscoveryMs |
| Timestamp of the last discovery pass. | |
| uint32_t | lastRequestMs |
| Timestamp of the last conversion request. | |
| TrackedSensorSnapshot | trackedSensors [kMaxTrackedSensors] |
| State for named sensors. | |
| DiscoveredSensorSnapshot | discoveredSensors [kMaxDiscoveredSensors] |
| Diagnostic discovery list. | |
Detailed Description
Complete OneWire bus and sensor state snapshot.
The snapshot is the single source of sensor state for control, serial diagnostics, and telemetry. Callers read it after update() without needing to interact with the OneWire or DallasTemperature libraries directly.
The documentation for this struct was generated from the following file:
- firmware/controller/sensor_manager.h
