Arduino sketch entry point for the aquarium cooling controller. More...

#include <Arduino.h>
#include <esp_arduino_version.h>
#include <esp_ota_ops.h>
#include <Preferences.h>
#include "control_engine.h"
#include "display_format.h"
#include "fan_driver.h"
#include "fan_curve.h"
#include "fault_monitor.h"
#include "fault_policy.h"
#include "mqtt_telemetry.h"
#include "ota_upload_server.h"
#include "rpm_monitor.h"
#include "sensor_manager.h"

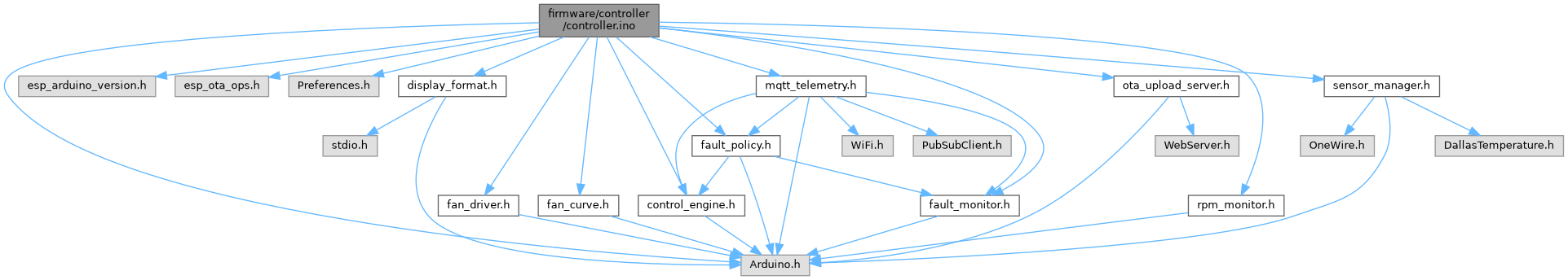

Include dependency graph for controller.ino:

Functions
void	setup ()
	Sets up hardware, persisted settings, diagnostics, and telemetry.

void	loop ()
	Runs one non-blocking controller iteration.

Detailed Description

Arduino sketch entry point for the aquarium cooling controller.

The sketch wires the firmware modules together and owns the runtime loop. It sets up persistent temperature-control storage, water-temperature sensing, fan PWM output, tachometer RPM monitoring, fault evaluation, serial diagnostics, and optional MQTT telemetry.

Runtime behavior is locally autonomous by design: cooling control, fan safety monitoring, and diagnostics continue on the ESP32 even when Wi-Fi, MQTT, or external integrations are unavailable.

Circuit

DS18B20 water probe on the shared OneWire bus.
Four-wire PWM fan controlled by ESP32 LEDC output.
Fan tachometer connected to an interrupt-capable ESP32 GPIO.

Libraries

Arduino core for ESP32.
Preferences for persisted target-temperature storage.
OneWire and DallasTemperature through SensorManager.
PubSubClient and WiFi through MqttTelemetry.

Main Loop Order

process serial commands,
update sensor conversions,
compute the fan PWM command,
apply PWM and update start boost,
update RPM sampling and MQTT connection state,
periodically evaluate faults, print diagnostics, and publish telemetry.

Serial Commands

The serial monitor exposes service commands for status output, target-temperature changes, default reset, control defaults, fault-policy settings, network status, and forced telemetry publishing.

Notes

Keep this sketch focused on orchestration. Hardware abstractions and policy decisions live in dedicated modules so Doxygen pages remain navigable and the Arduino loop stays easy to audit.

Function Documentation

◆ loop()

void loop ( )

Runs one non-blocking controller iteration.

Arduino calls this repeatedly. Each iteration services serial commands, advances sensor sampling, recomputes the control snapshot, updates the fan output and RPM monitor, and maintains MQTT connectivity. Diagnostics and telemetry are emitted at kDiagnosticsIntervalMs so the controller loop remains responsive between reporting cycles.

◆ setup()

void setup ( )

Sets up hardware, persisted settings, diagnostics, and telemetry.

Arduino calls this once after boot. The setup routine brings up serial output, non-volatile preferences, fan PWM, RPM capture, the OneWire sensor bus, and MQTT telemetry. It also prints the hardware configuration and measured fan curve so an installed controller can be inspected from the serial monitor.
